Mango220 Start Kit [ Exynos 4412 S5PC220 EVB ]
판매가격 : 360,000원 (VAT 별도)
원산지 :
수량
: 수량증가
수량감소
SNS 알리기 :

관련상품

상품상세



Feature





l  Samung S5PC220 Exynos 4412 Cortex-A9 Quad Core

l  LPDDR2 1GByte

l  ARM Max Clock : 1400MHz

l  GPU ARM Mail-400

l  1 x USB 2.0 Host

l  1 x USB 2.0 Device

l  2 x MIPI Camera Connector

l  2 x Parallel Camera

l  Boot / Storage : mircro SD Slot

l  Support EMMC 4.4.1

l  10/100 Ethernet (RJ45)

l  Input Power Supply : 5V 2A

l  1 x HDMI 1.4 version Support

l  Support SATA 2.0

l  Expansion Connectors ( 40 x 2)

l  OS Support :  Linux(Qt), Android,Ubuntu

l  Dimensions : 150 x 104 mm

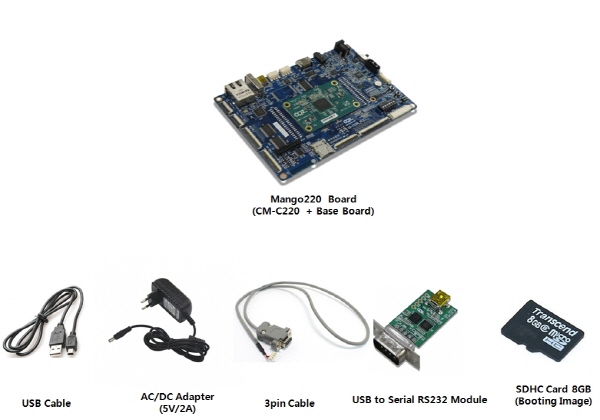

Shipping Materials





l  Mango220 Main Board ( CM-C220 + CX-C220 Base) : 1ea

l  5V AC DC Adapter : 1ea

l  SDHC Card 8GB (Booting Image 포함) : 1ea

l  3pin Serial Cable : 1ea

l  Mini USB Cable : 2ea

l  USB to Serial RS232 Module : 1ea

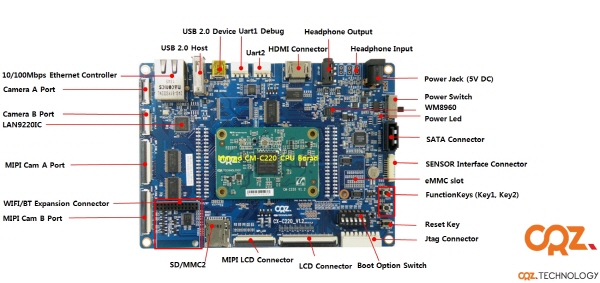

부품 배치도
