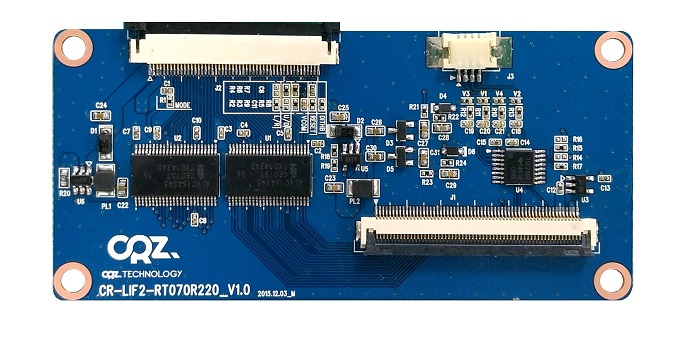

7inch 감압식 LCD 보드 ( CR-LIF2-RT070R220)
판매가격 : 10,000원 (VAT 별도)
원산지 : 대한민국
수량
: 수량증가
수량감소
SNS 알리기 :

관련상품

상품상세





l  Compatible 7inch TFT LCD 감압식 LCD

l  On Board TTL(RGB) to LVDS Conveter

l  Wide frequency range : 20 to 85 MHz shift clock support

l  +3.3V LVDS 24Bit Flat Panel Display (FPD) Transmitter - 85MHz

l  Support  various resolutions

l  BACKLIGHT PWM step-up DC/DC Converters

l  3.3V Level I2C interface




<구동 모습>

https://plus.google.com/103553949298583884488/posts/ThKLpewrxSM?pid=6231011092559449106&oid=103553949298583884488

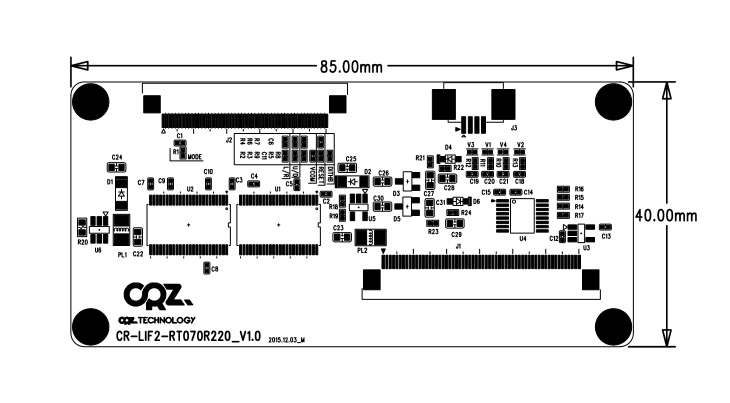

Dimensions

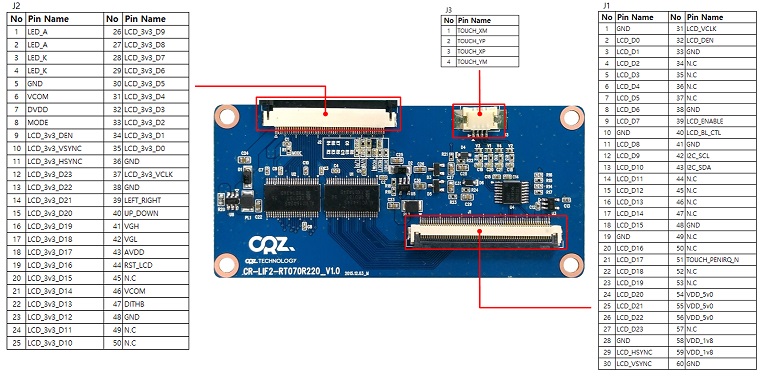

Pin Map





Supported Boards

l  Mango 220 Main Board


Shipping Meterials

l  LCD interface Board : 1ea
