Cosmos/Cosmos+ OpenSSD FPGA Platform
판매가격 : 3,950,000원 (VAT 별도)
원산지 : 대한민국
수량
: 수량증가
수량감소
64GB Nand Module :
Host Adapter and Cable :
SNS 알리기 :
옵션적용가격 : 3,950,000

상품상세



Price :

3,950,000  (VAT 별도)

USD \$ 3,600

help@crz-tech.com ( 031-701-5057)

Platform Feature

l  FPGA: Xilinx XC7Z045-3FFG900 Zynq-7000

-          Dual ARM Cortex-A9 1GHz Core

-          NEON DSP co-processor for each core

-          350K LCs

l  1GB DDR3

l  NAND Modules

-          Cosmost : CFM-002 (up to 2)

-          Cosmos : CFM-001 (only 1)

l  1 SD CARD Slot

l  Dual PCIe Gen2 x8 End-Points (Cabled PCIe Interface)

l  1 Gigabit Ethernet Interface

l  1 USB 2.0 (configurable to Host or Device)

l  JTAG and Debug Interface

l  1 USB-UART Port

l  1 ARM JTAG

l  1 PL JTAG

l  1 Digilent USB-JTAG

l  Status LEDs

l  Buttons and Tactile switches

l  Indicators and Switches



Shipping Materials

l  Cosmos Openssd Board : 1ea

l  AC/DC Adapter (12V/3A) : 1ea

l  DC Power Adapter Converter Jack : 1ea

l  USB 2.0 to Micro usb Cable (Micro-B Type , 1M ) : 1ea

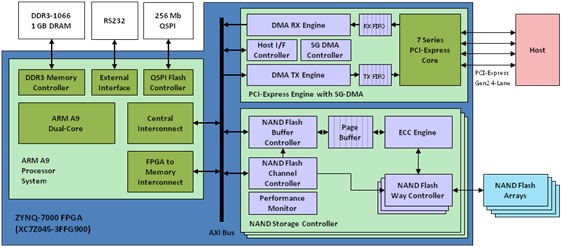

Block Diagram




Wiki

l  http://www.openssd-project.org/platforms/#

l  http://www.openssd.io/
