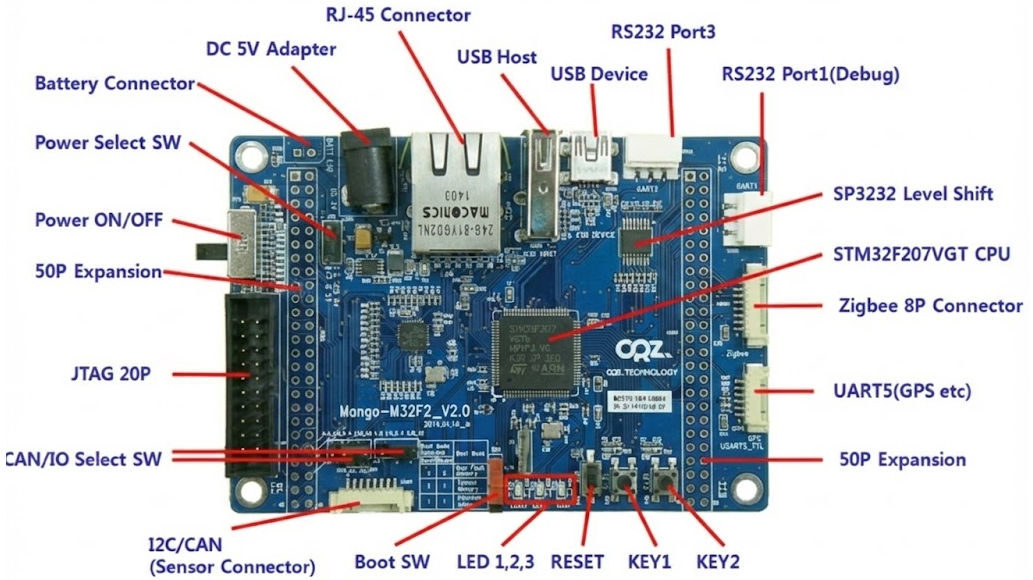

Mango M32F2 Main Board Kit Feature
l STM32F207VxT Cortex-M3 MPU(120Mhz)
l Debug and Download : UART1 (RS-232)
l Ethernet : RTL8201CP 10/100Mbs Ethernet
l USB Host : 1 Port (Full Speed)
l USB Device : 1 Port
l Power : DC-JACK
l Button : Reset : 1 , Button : 2
l Boot Switch : 1
l LED indicator : 3
l GPS : UART3
l Zignee : UART2
l CAN Transceiver or I2C Port : 1 Port
l Expansion Connector (50x2) : CAN,UART,I2C,GPIO etc
l Dimensions : 100 x 70 mm
Shipping Materials
l Mango M32F2 Main Board : 1ea
