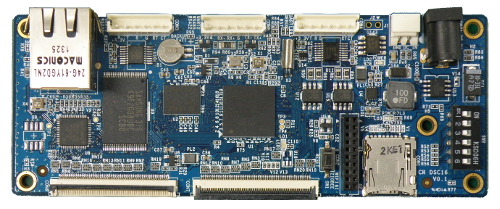

Mango DSC Main Board



help@crz-tech.com ( 031-701-5057)

Mango DSC Main Board Kit Feature



l  Processor : Samsung S3C2416 266Mhz

l  RAM : Mobile DRAM 64MB

l  Boot Mode : SD/MMC , NAND Support

l  OS : Wince , Linux 지원

l  RS232 : Full Spec 2Port

l  RS422 / RS485 : 1Port

l  Display : TFT LCD Connect 1port ( 800 x 480 with Touch LCD )

l  IO Port L 60 Pin ( EBI , GPIO , etc )

l  Ethernet : 10/100Mbs SMSC9220 IC

l  SD/MMC : 1Port ( Booting )

l  WiFi/BT : 1Port

l  Dimensions : 130 x 50 mm

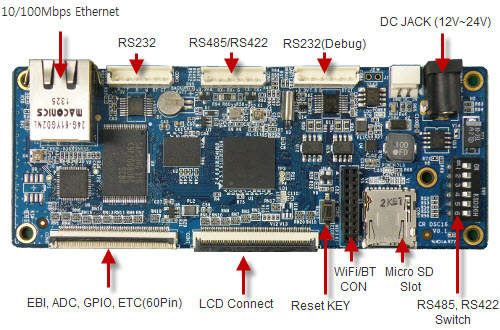

부품 배치도

Shipping Materials



l  Mango DSC Main Board : 1ea





Boot Mode



l  기본 : SD/MMC 부팅

l  NAND 부팅 : J2 커넥터 연결

Documents



l  문의 : help@crz-tech.com 요청

l  소스 : http://crztech.iptime.org:8080/Release/mango-dsc-s3c2416/

l  매뉴얼 : http://crztech.iptime.org:8080/Release/mango-dsc-s3c2416/Manual/
