TUNA 2.0
판매가격 : 4,500,000원 (VAT 별도)
원산지 : 대한민국
수량
: 수량증가
수량감소
SNS 알리기 :
상품이 품절되었습니다.

관련상품

상품상세



l  XC7Z045-3FFG900 Zynq-7000 FPGA

ü  Dual ARM Cortex-A9 1GHz Core

ü  NEON DSP co-processor for each core

ü  350K LCs



l  1GB DDR3 component memory on PS side

l  Two 128Mb Quad-SPI(QSPI) Flash Memories

l  SODIMM DDR3 Memory Slot

l  1 x SD CARD connector

l  1 Gigabit Ethernet Interface

l  1 x USB 2.0 (configurable to Host or Device)

l  JTAG and Debug Interface

l  1 x USB-UART Port

l  1 x ARM JTAG

l  1 x PL JTAG

l  Status LEDs

l  Buttons and Tactile switches

l  Indicators and Switches  LEDs and Tactile switches

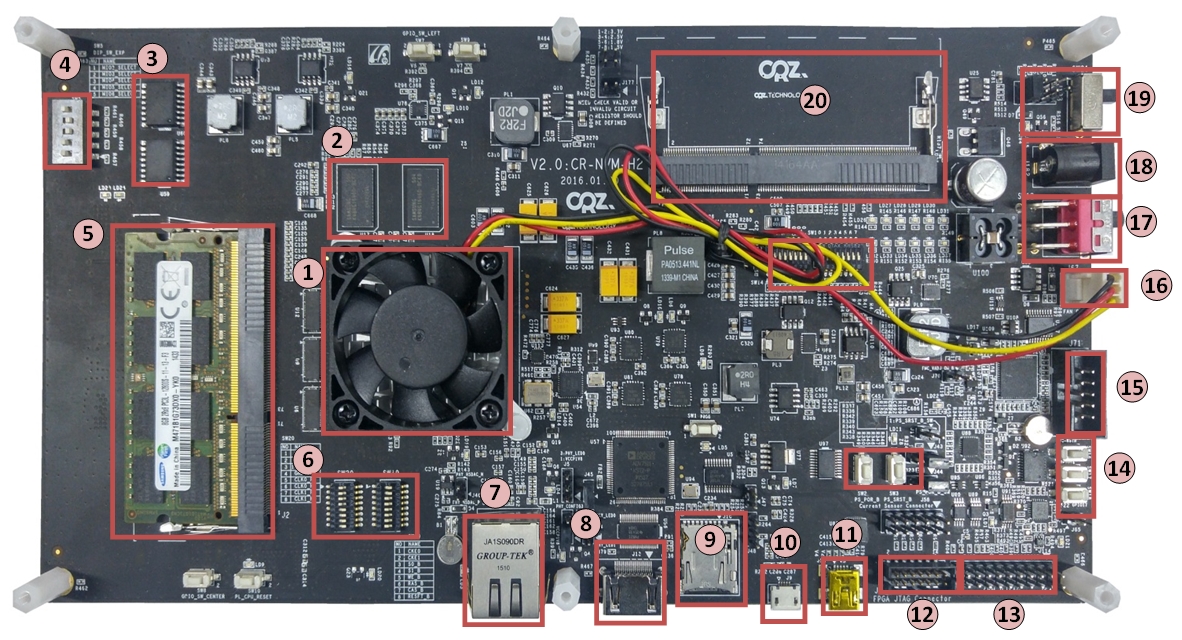

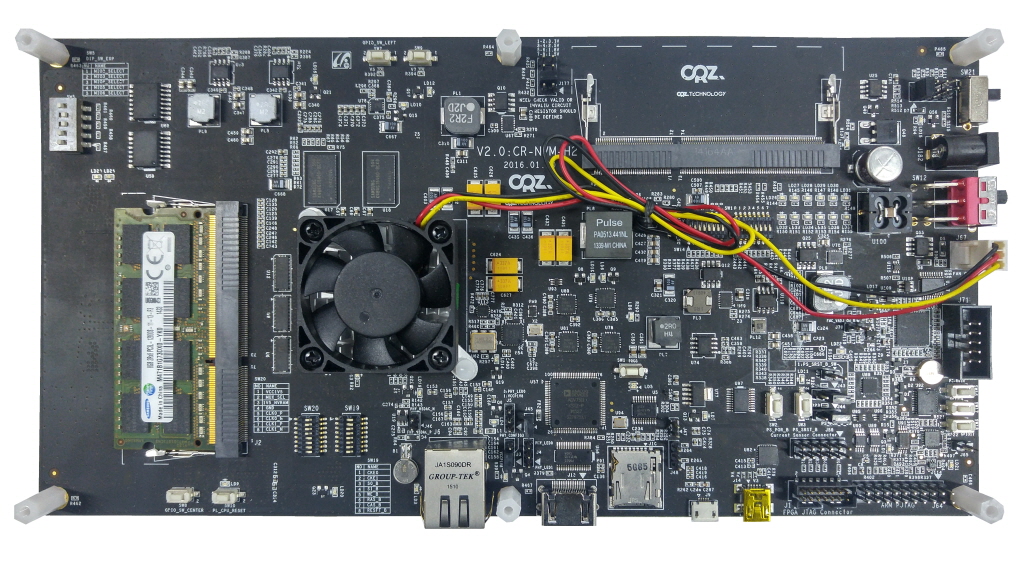

부품 배치도



Number

Part number

Description

1

U1

XC7Z045-3FFG900 Xilinx Zynq-7000 SoC FPGA

2

U17,U18

DDR3 Component Memroy (PS), 1GB

3

U59, U60

128 Mb QSPI memory

4

SW5

Configuration mode select switch

5

J2

SODIMM DDR3 for PL

6

SW19, SW20

DIP Switch for DDR3 control signals

7

J6

Gigabit Ethernet

8

J12

HDMI Video output

9

J10

Micro SD card connector

10

J9

Micro USB 2.0 ULTP

11

J14

USB to UART Mini-B connector

12

J1

14 pin JTAG connector

13

J64

20 pin ARM JTAG connector

14

J57

PMOD pin

15

J71

PMbus connector

16

J67

FAN connector

17

SW12

Board power switch

18

J22

6pin ATX power connector

19

SW13

SODIMM DDR3 power switch

20

J7

SODIMM Expansion for NADN and general purpose





Shipping Materials



l  TUNA NVM-H2 Board : 1ea

l  SO-DIMM Samsung DDR3 8GB PC3L-12800S Memory : 1ea

l  DC Adaptor 12V / 3A : 1ea

l  DC Power Adapter Converter Jack : 1ea

l  USB 2.0 to Micro usb Cable (Micro-B Type , 1M ) : 1ea
