MangoM32F2 Feature
-
STM32F207VxT Cortex-M3 MCU (120MHz )
-
Debug and Download : UART1 (RS-232)
-
Ethernet : RTL8201CP 10/100Mbs Ethernet
-
USB Host : 1 Port (Full Speed)
-
USB Device : 1 Port
-
Power : DC-JACK
-
Button : Reset : 1 , Button : 2
-
Boot Switch : 1
-
LED indicator : 3
-
GPS : UART3
-
Zignee : UART2
-
CAN Transceiver or I2C Port : 1 Port
-
Expansion Connector (50x2) : CAN,UART,I2C,GPIO etc
-
Dimensions : 100 x 70 mm

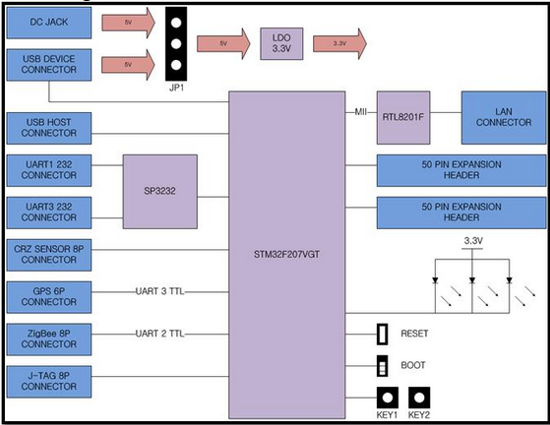

Mango M32F2 Main Board Block Diagram

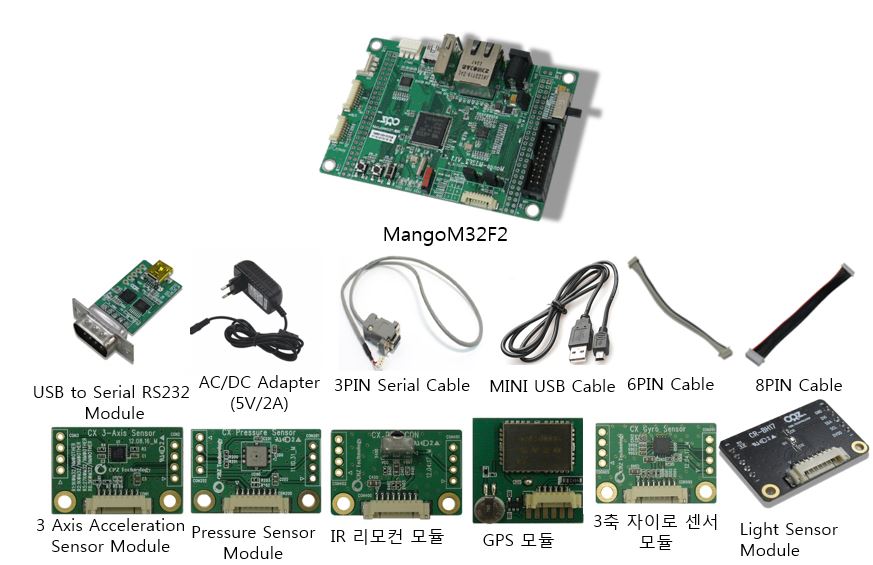

Package Contents
-
MangoM32F2 Main board : 1ea
-
3PIN Serial Cable : 1ea
-
Mini USB Cable : 1ea
-
USB to Serial RS232 Module : 1ea
-
Light Sensor Module (조도 센서 모듈) : 1ea
-
Pressure Sensor Module (대기압 센서 모듈) : 1ea
-
3 Axis Acceleration Sensor Module (3축 가속도 센서 모듈) : 1ea
-
3축 자이로 센서 모듈 (3 Axis Gyroscope Module) : 1ea
-
IR 리모콘 모듈 (IR Remocon Sensor Module) : 1ea
-
GPS 모듈 (SMART GPS Module) : 1ea
-
8PIN Cable : 1ea
-
6PIN Cable : 1ea
