Feature

Freescale i.MX 6Quad Processor 탑재한 보드

Linux , Android 5.0 OS 지원



l  i.MX 6Quad Processor 1Ghz

l  2GB DDR3 SDRAM

l  Connectivity

Ø  Mini PCIe connector

Ø  SATA 22-pin connector

Ø  Micro SD/MMC card slots

Ø  10/100/1000 Ethernet Port

Ø  1 xMini USB 2.0 OTG connector

Ø  eMMC 4.3 connector

l  Display

Ø  MIPI DSI 지원

Ø  2 x LVDS connectors

Ø  HDMI display interface connector



l  Audio : WM8960 Stereo audio codec

l  USB Host 2.0 :  2 Port (Full Speed)

l  Camera : Parallel x 1  , MIPI x 1

l  UART : UART1 (Debug)

l  Power : DC-JACK 5V, 1A

l  Button : Button : 2

l  Boot Switch : 1

l  LED indicator : 2

l  Expansion Connector ( 60x1 ) : EBI,UART,I2C GPIO etc

l  Dimensions : base 120 x 76 mm CPU 50 x 40mm

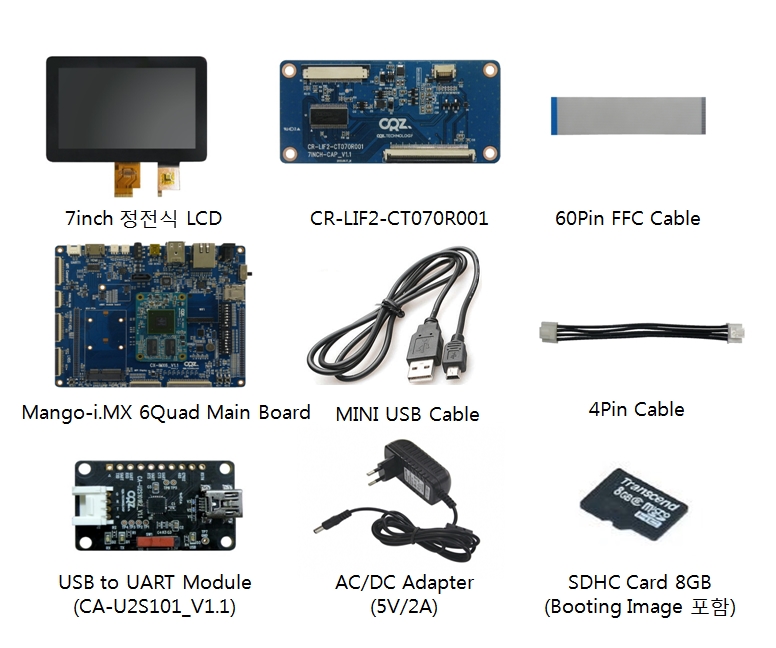

Package Contents

l  CM-IMX6Q CPU Board+ CX-IMX6Q Base Board : 1ea

l  Mini USB Cable : 2ea

l  4Pin Cable  : 1ea

l  5V /2A DC Adapter : 1ea

l  USB to Serial UART Module ( CA-U2S101_V1.1) : 1ea

l  Micro SDHC 8GB card : 1ea

l  7inch 정전식 LCD : 1ea

l  CR-LIF2-CT070R001 : 1ea

l  60Pin FFC Cable 15cm : 1ea

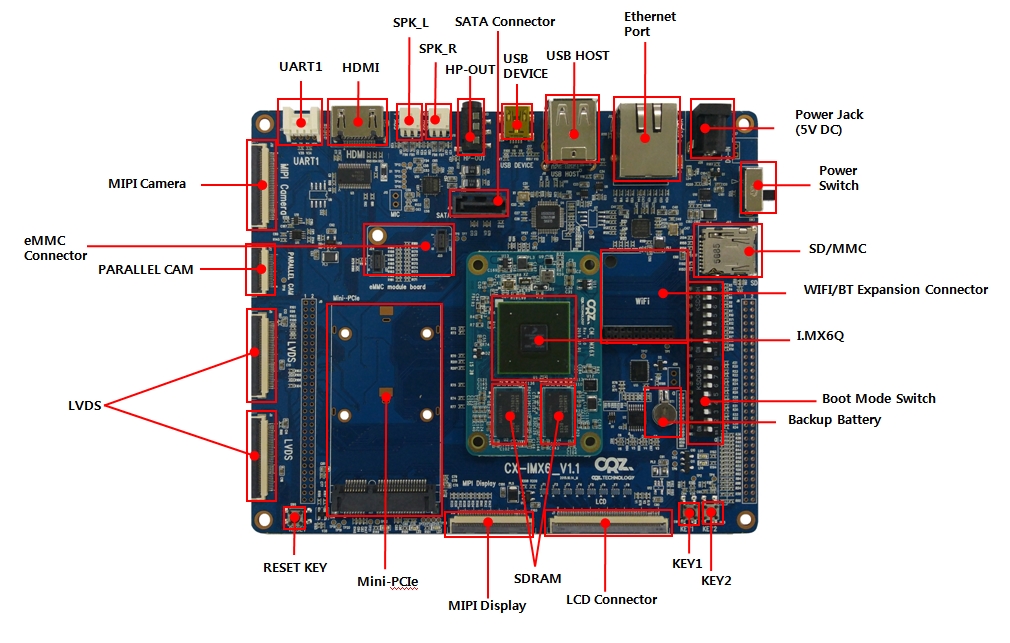

부품 배치도

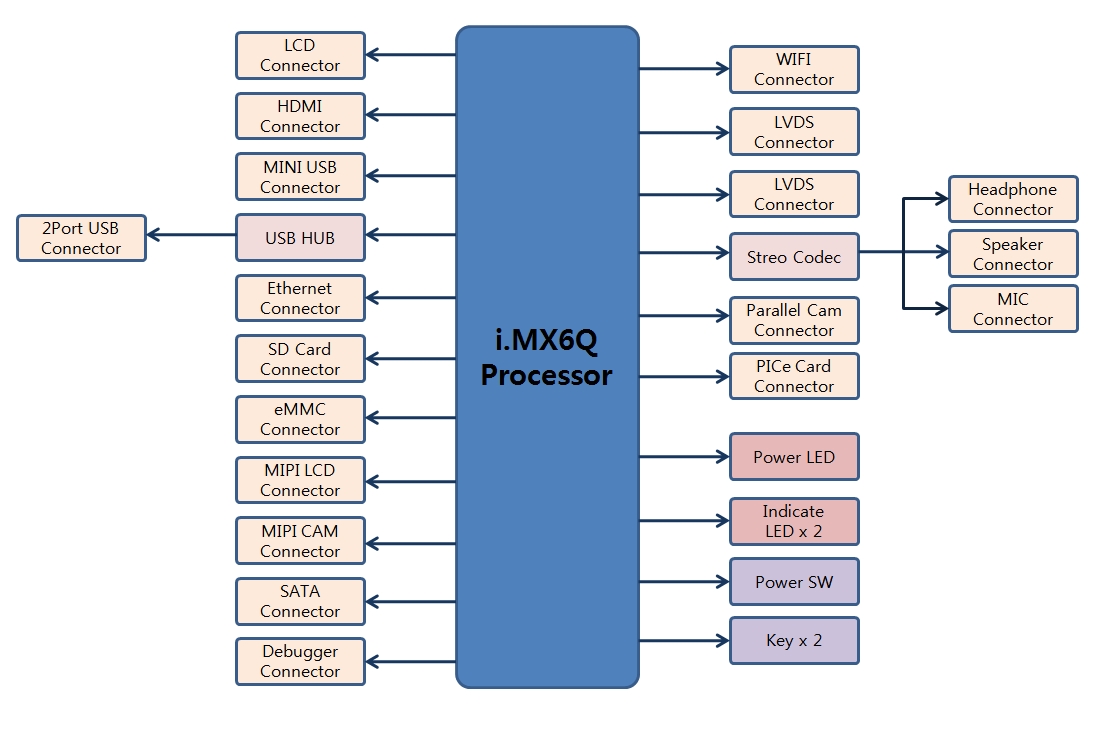

블록 다이어그램





Documents



l  Quick Start Guide Mango-IMX6Q
