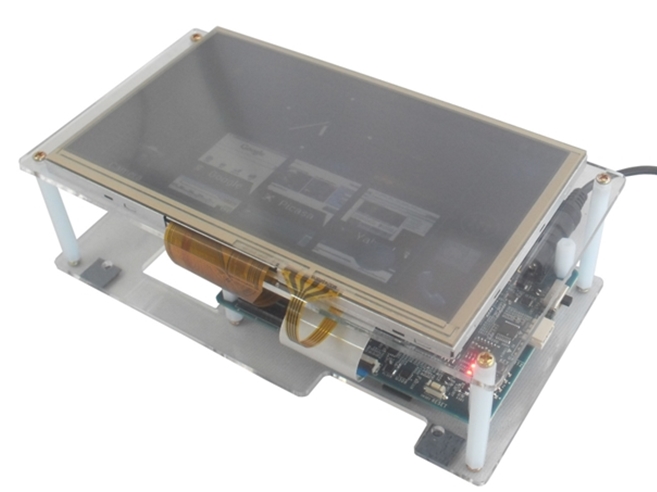

Mango210 Standard Package 1 [Cortex-A8 S5PV210 EVB]
판매가격 : 460,000원 (VAT 별도)
원산지 : 대한민국
수량
: 수량증가
수량감소
SNS 알리기 :

상품상세



help@crz-tech.com


Manual and Source



Hardware Schematic download

http://www.mangoboard.com  “Downloads > Mango210”

또는 help@crz-tech.com으로 요청



Source Download

http://crztech.iptime.org:8080/Release/mango210/



Linux, Android Manual

http://www.mangoboard.com/main/?cate1=10&cate2=50&cate3=81

또는

http://cafe.naver.com/embeddedcrazyboys

망고보드 매뉴얼->  망고210 메뉴얼(S5PV210)



Package Contents

lMango210 Main Board: 1EA

l7inch 800x480 감압식 LCD : 1EA

lCR-LIF1-AT070TN94_V1.0 : 1EA

lMini USB Cable : 2EA

l60Pin FFC Cable : 1EA

l5V /2A DC Adapter : 1EA

lUSB to RS232 Module: 1EA

lMicro SDHC 8GB card : 1EA

l3Pin Serial Cable : 1EA



 Features

lCPU : Samsung S5PV210 ARM Cortex A8 , 1GHz Application Processor

lMemory : Mobile DDR2 512Mbytes , SLC NAND Flash 256Mbytes

lDisplay  : 7 WVGA(800x480) Color TFT with Touch Screen Interface

lAudio : Wolfson WM8960 Audio Codec with 1W Stereo Speaker Amplifier

lEthernet : SMSC LAN9220 10/100Mbps Ethernet Controller

lUSB : USB2.0 HOST , USB2.0 OTG

lSD : SD/MMC PORT 0 ,1 Standard SD Connector

lSD : SD/MMC PORT 2 Expansion Connector ,

lSD : SD/MMC PORT 3 WiFi & Expansion Connector

lUART : UART Port 0 BT & Expansion Connector

lUART : UART Port 1 ,2 D-SUB9 DEBUG

lHDMI : V1.3(1080p Full HD)

lCamera : 1.3M(130만화소),5M(500만화소) Pixel AF camera (옵션)

lWiFi/BT : SDIO ,802.11b,g 지원

lConnectors : xpansion Connectors(120X2)

lConnectors : IrDA, Camera, I2S, SPI0/SPI1, SDIO0/2, EBI, UART, LCD

lDimensions : 110 x 80 mm



PCB Size



Block Diagram

부품 배치도






Booting Mode

SD 부팅 : 1, 3, 4 ON , 나머지 OFF

NAND 부팅 : 1, 2 ON , 나머지 OFF
