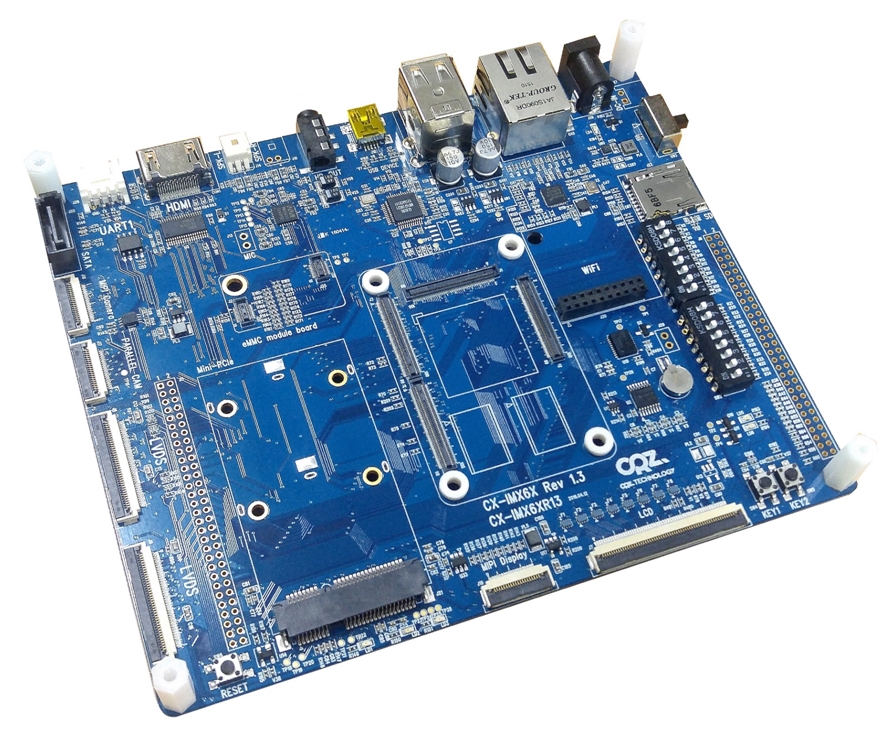

Freescale i.MX6 Quad Processor žÀçÇÑ º¸µå
Wince, Linux , Android 6.0 OS Áö¿ø

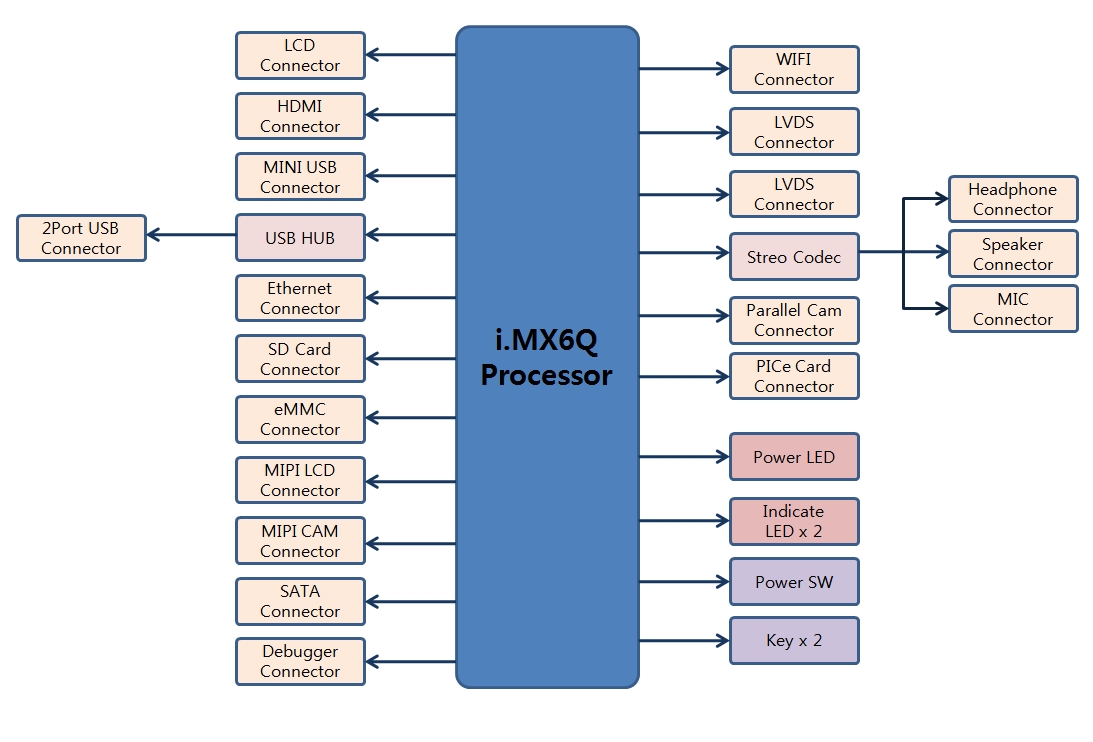

l i.MX6 Quad Processor 1Ghz
l 2GB DDR3 SDRAM

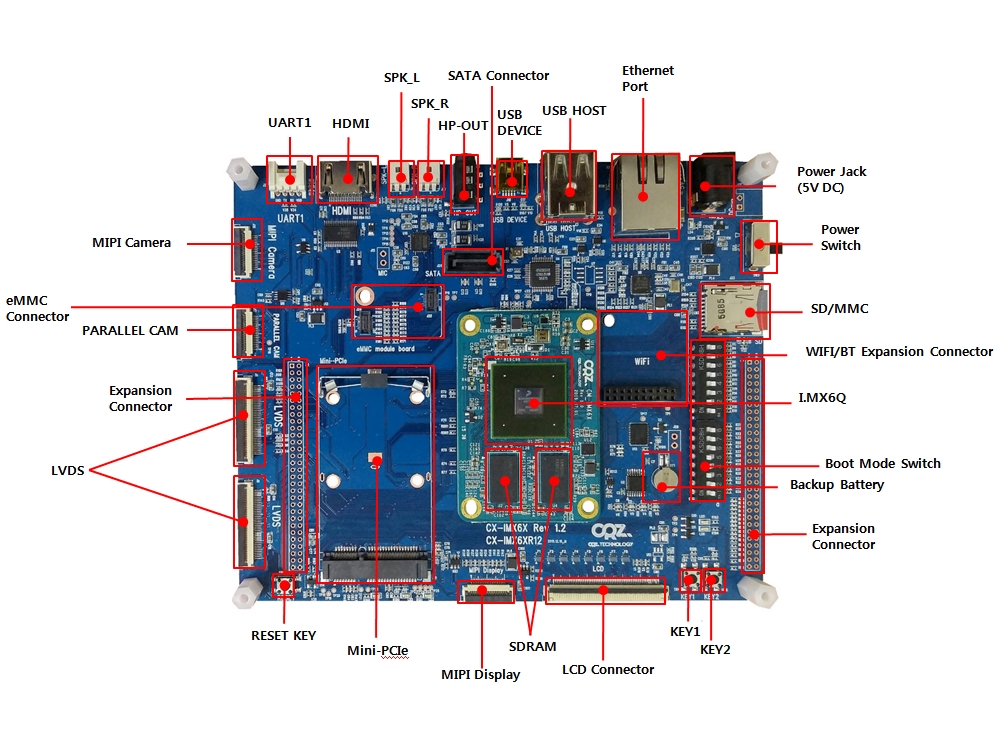

l Connectivity
¨ª Mini PCIe connector
¨ª SATA 22-pin connector
¨ª Micro SD/MMC card slots
¨ª 10/100/1000 Ethernet Port
¨ª 1 xMini USB 2.0 OTG connector
¨ª eMMC 4.3 connector
l Display
¨ª MIPI DSI Áö¿ø
¨ª 2 x LVDS connectors
¨ª HDMI display interface connector
l Audio : WM8960 Stereo audio codec
l USB Host 2.0 : 2 Port (Full Speed)
l Camera : Parallel x 1 , MIPI x 1
l UART : UART1 (Debug)
l Power : DC-JACK 5V, 1A
l Button : Button : 2
l Boot Switch : 1
l LED indicator : 2
l Expansion Connector ( 60x1 ) : EBI,UART,I2C GPIO etc
l Dimensions : base 120 x 76 mm CPU 50 x 40mm
l Quick Start Guide Mango-IMX6Q
