Detail
|
;)
상품상세
Features
l PCB : 30mm x 25mm
l Supply Voltage : 3.3V
l Compatibility Board : Mango-M32F2, Mango-M32F4, AT101
l OLED Display
Ø Screen Size : 1.30”
Ø Number of Pixels : 128x64
Ø Module Size(mm): 34.50 x 35.00
Ø Panel Size(mm) : 34.50 x 23.00 x 1.45
Ø Interface : I2C
Ø DUTY : 1/64
Ø Supply Voltage : 1.65 ~ 3.5V
Shipping Materials
l CS-zFD-OLED : 1 ea
l OLED LCD : 1 ea
l 8Pin Cable : 1 ea

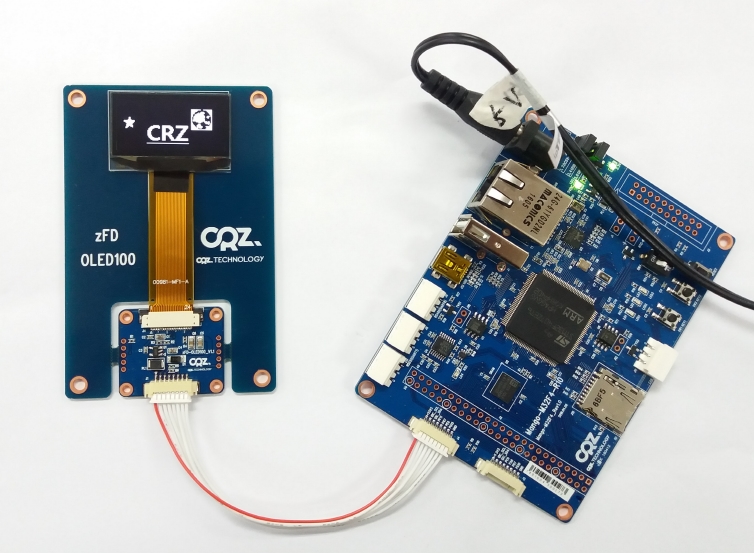

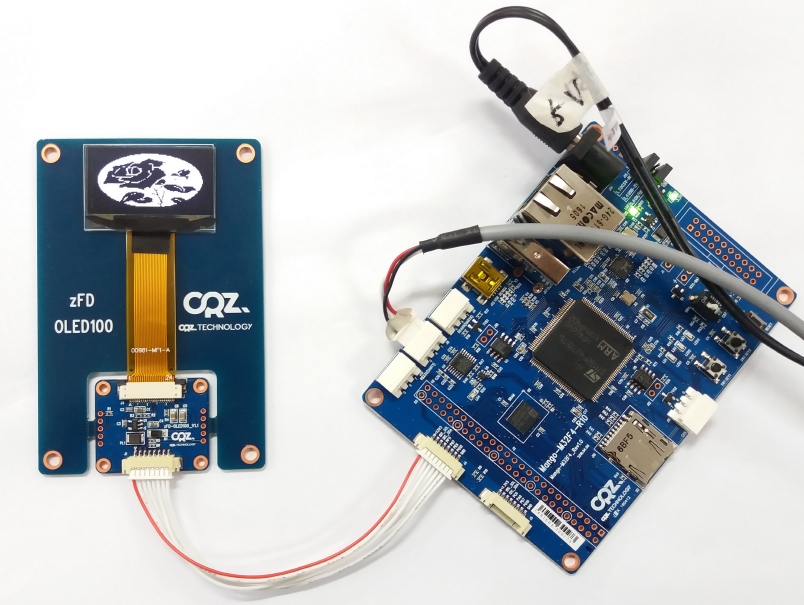

DEMO

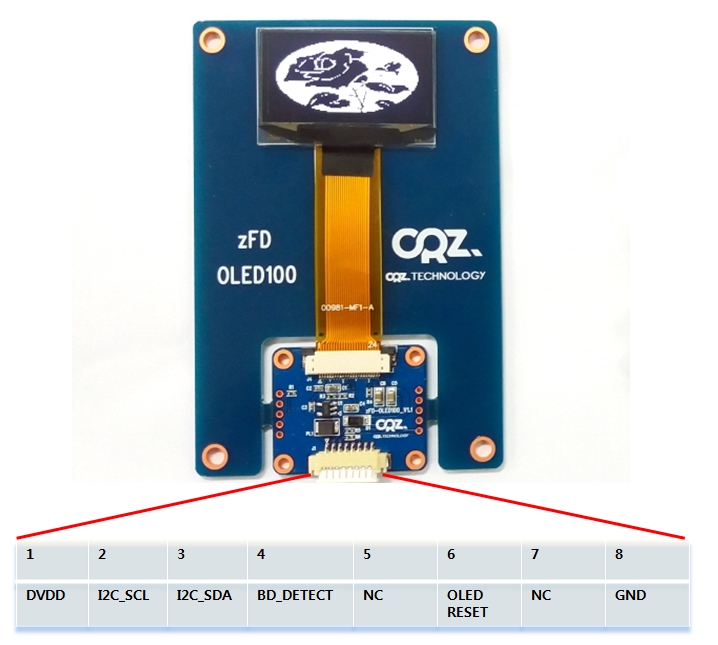

PINMAP

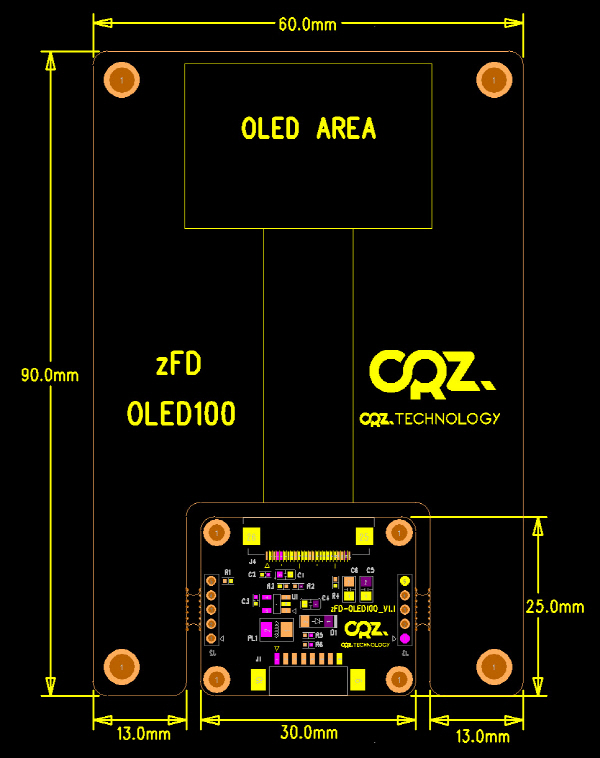

DIMENSION
DOCUMENTS
