Mango-M32F2 OLED Start Kit
판매가격 : 125,000원 (VAT 별도)
원산지 :
수량
: 수량증가
수량감소
SNS 알리기 :

상품상세



help@crz-tech.com ( 031-701-5057)



Features

l  STM32F207VxT Cortex-M3 MPU(120Mhz)

l  Debug and Download : UART1 (RS-232)

l  Ethernet : RTL8201CP 10/100Mbs Ethernet

l  USB Host : 1 Port (Full Speed)

l  USB Device : 1 Port

l  Power : DC-JACK

l  Button : Reset : 1 , Button : 2

l  Boot Switch : 1

l  LED indicator : 3

l  GPS : UART3

l  Zignee : UART2

l  CAN Transceiver or I2C Port : 1 Port

l  Expansion Connector (50x2) : CAN,UART,I2C,GPIO etc

l  Dimensions : 100 x 70 mm

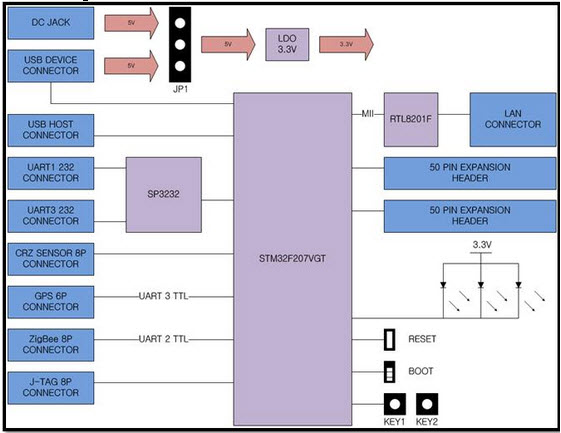

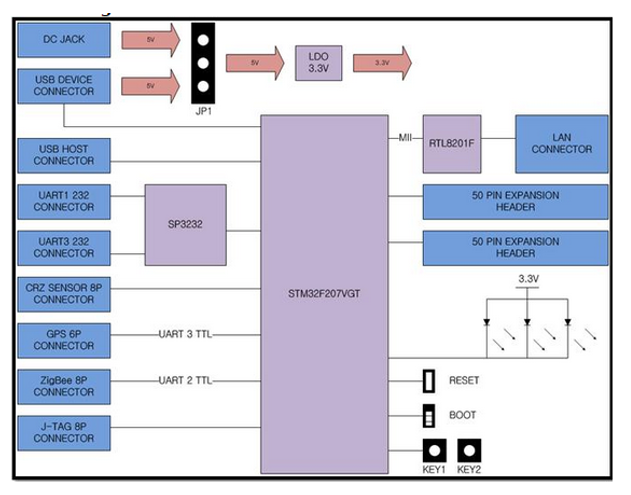

Mango M32F2 Main Board Block Diagram

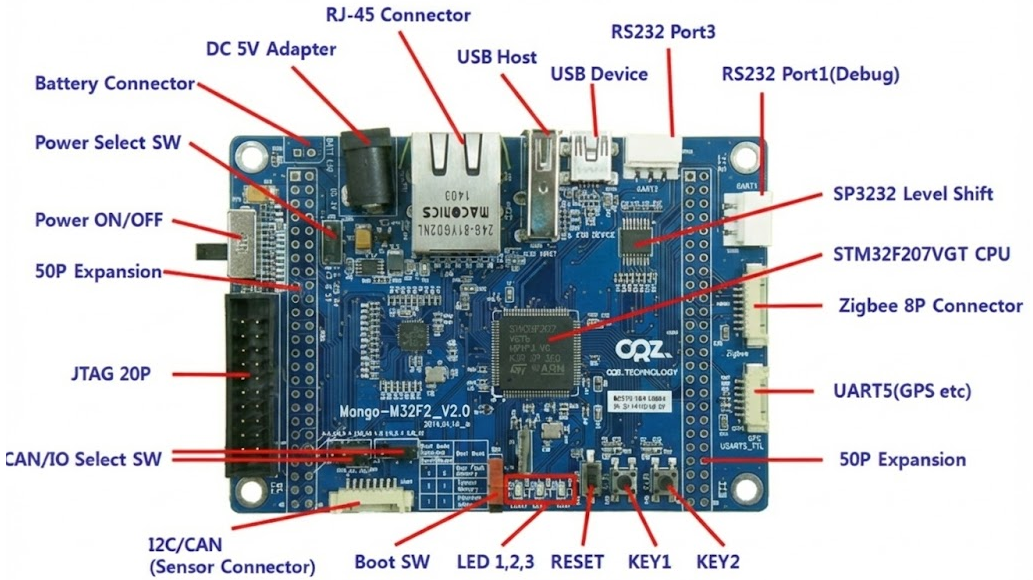

부품 배치도

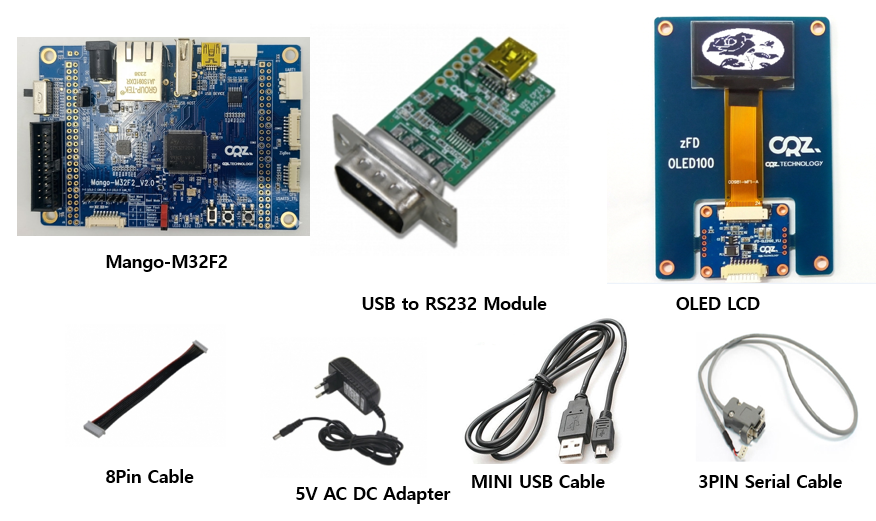

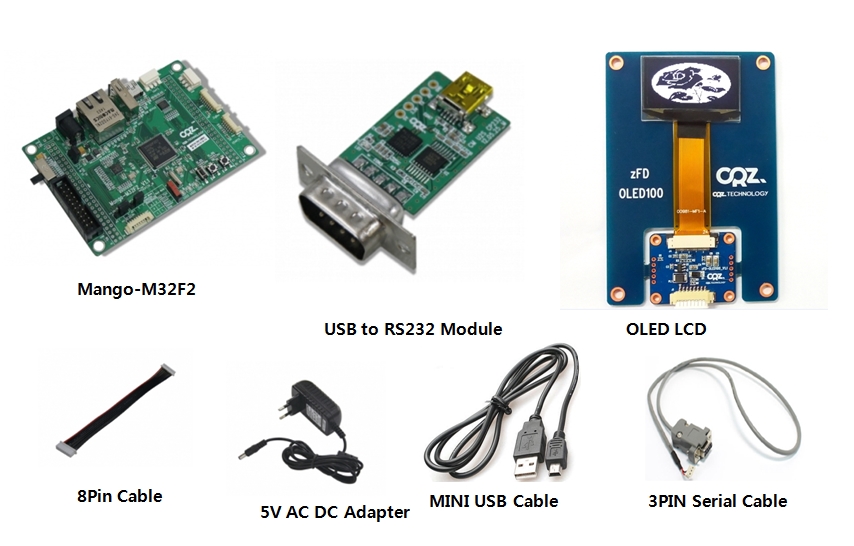

Package Contents

l  MangoM32F2 Main board : 1EA

l  3PIN Serial Cable : 1EA

l  Mini USB Cable : 1EA

l  USB to Serial RS232 Module : 1EA

l  AC/DC Adapter(5V/2A) : 1EA

l  OLED Display Module : 1EA

l  8Pin Cable : 1EA



Documents
