Mango-E-Toi Start Kit
판매가격 : 200,000원 (VAT 별도)
원산지 :
수량
: 수량증가
수량감소
SNS 알리기 :

상품상세



Features

l  Support MICRO USB  ( Download / Input Power )

l  Compatible Mango-E-Toi 900MHz CC1120 Module

l  Compatible Mango-E-Toi 2.4GHz CC2520 Module

l  Compatible Mango-E-Toi Ethernet Module

l  Intelligent processing with low-power high-performance 32bit Cortex-M3 MCU

l  Flash 1Mbytes

l  CPU : STM32F101VGT6

l  Input voltage : 5V

l  Dimensions : 100mm(W) * 79mm(H)

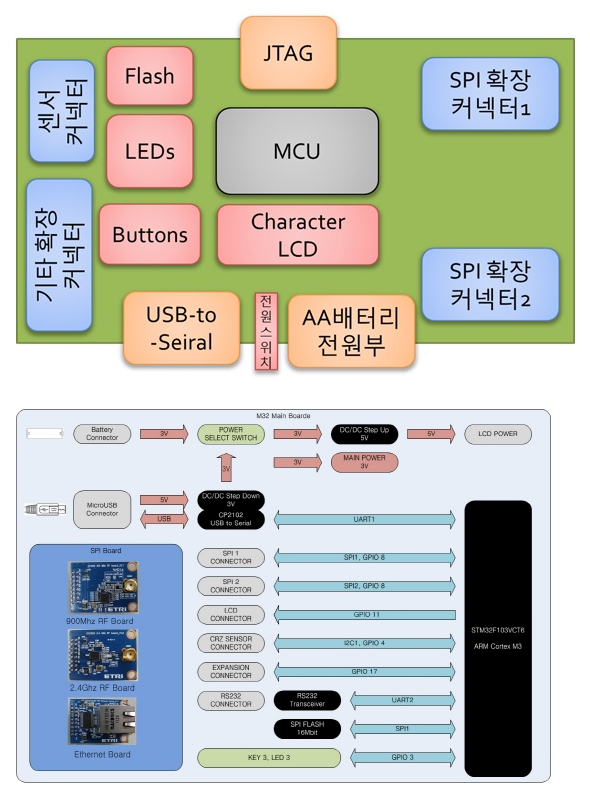

Mango-E-Toi Main Board Block Diagram

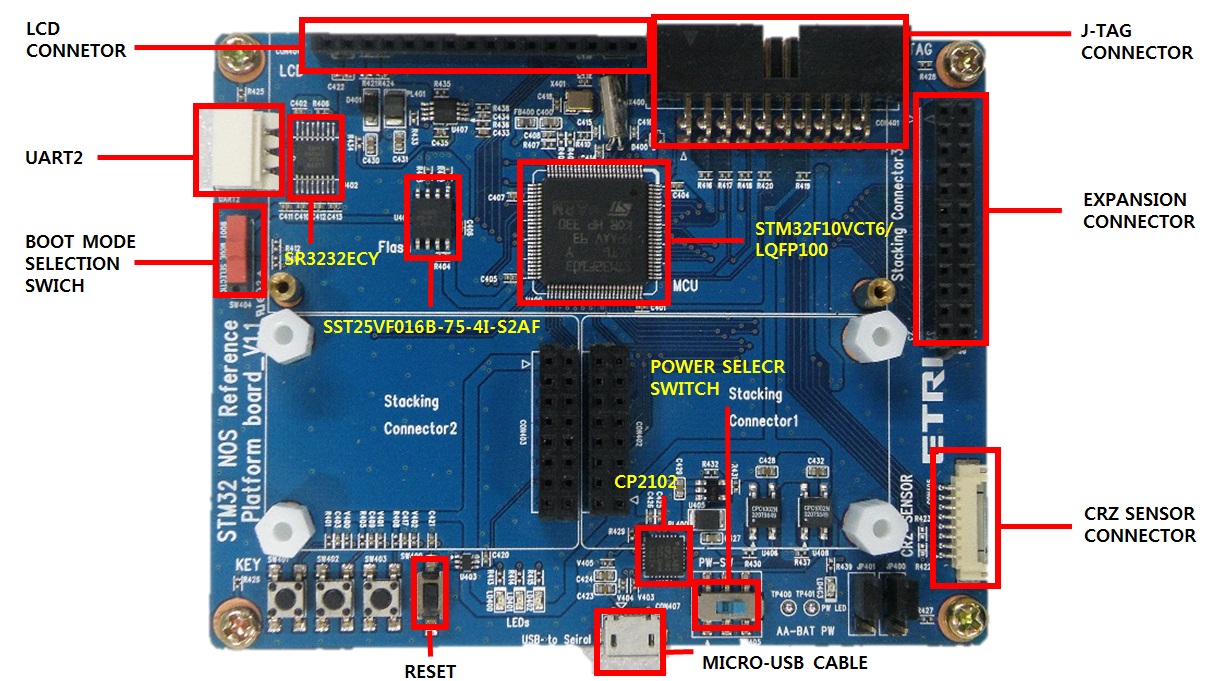

부품 배치도

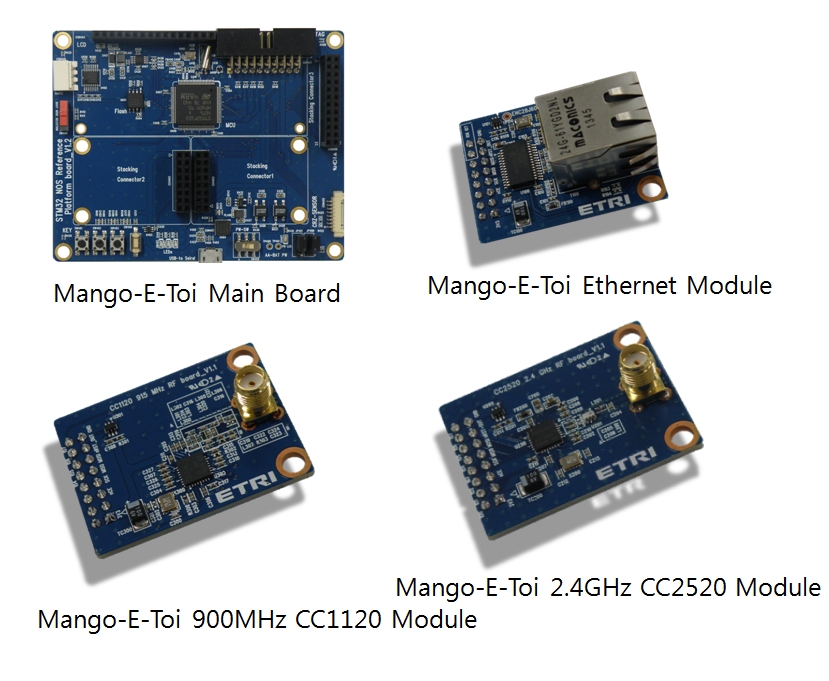

Shipping Meterials

l  Mango-E-Toi Main Board : 1EA

l  Mango-E-Toi 900MHz CC1120 Module : 1EA

l  Mango-E-Toi 2.4GHz CC2520 Module : 1EA

l  Mango-E-Toi Ethernet Module : 1EA
