Features
l NXP Quad Core LS1043A 1.6GHz
l DDR4 RAM 2GBytes
l PCIe 2 Ports
l 10Gbps Ethernet 1 Port
l 1Gbps Ethernet 2 Ports
l D-SUB9 RS232 2 Ports
l NAND 512MB 탑재
l CPLD 탑재
l Micro SD Slot 1 Port
l Input Power : 12V – 24V
Package Contents
l CM-CLS1043A + CX-CLS1043A Base Board : 1EA

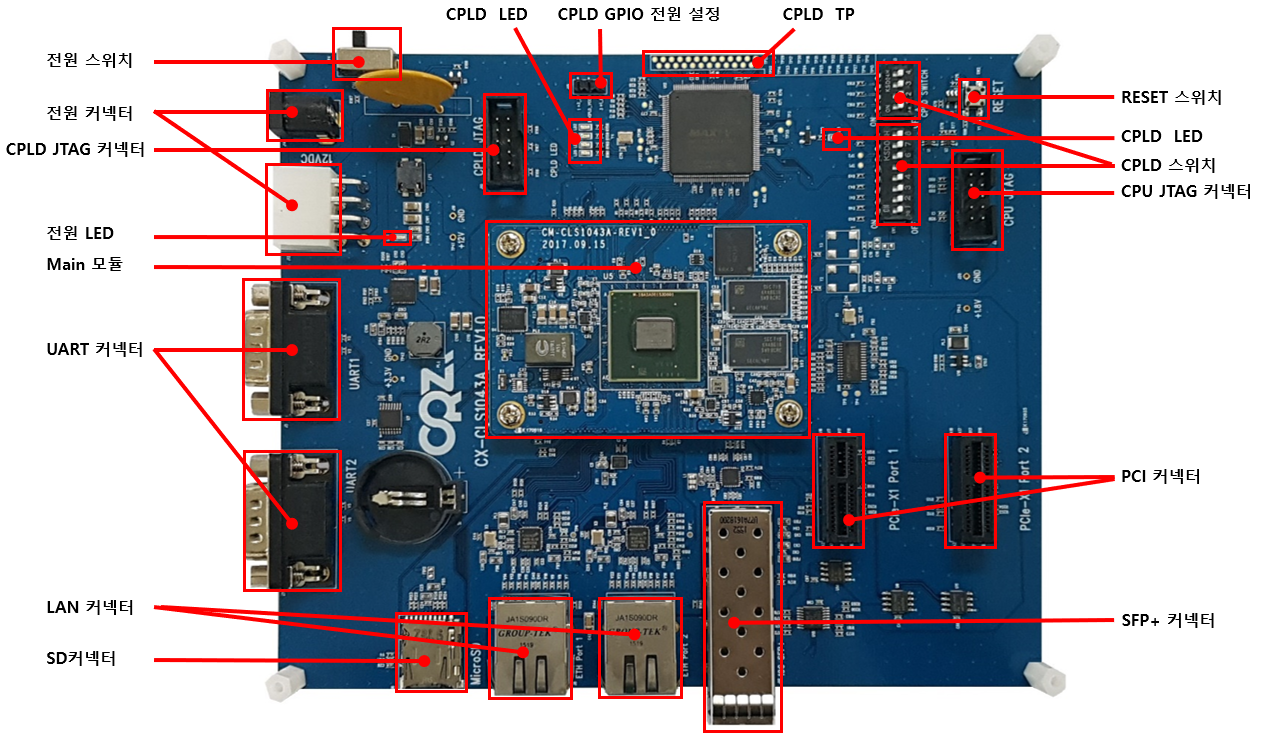

부품 배치도

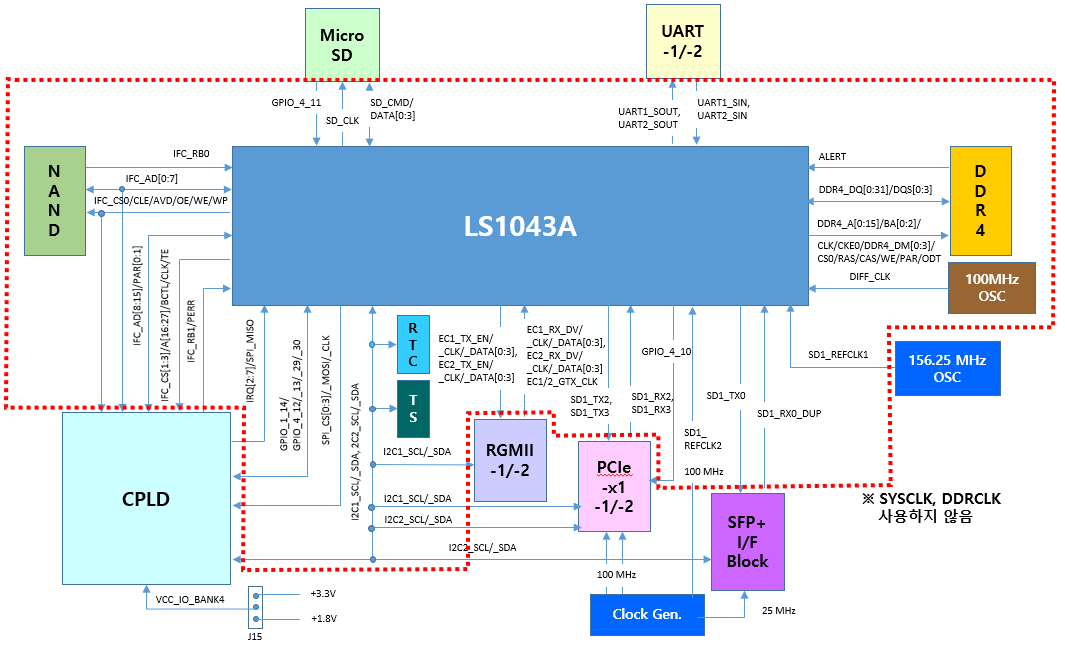

Block Diagram
Mechanical Dimension

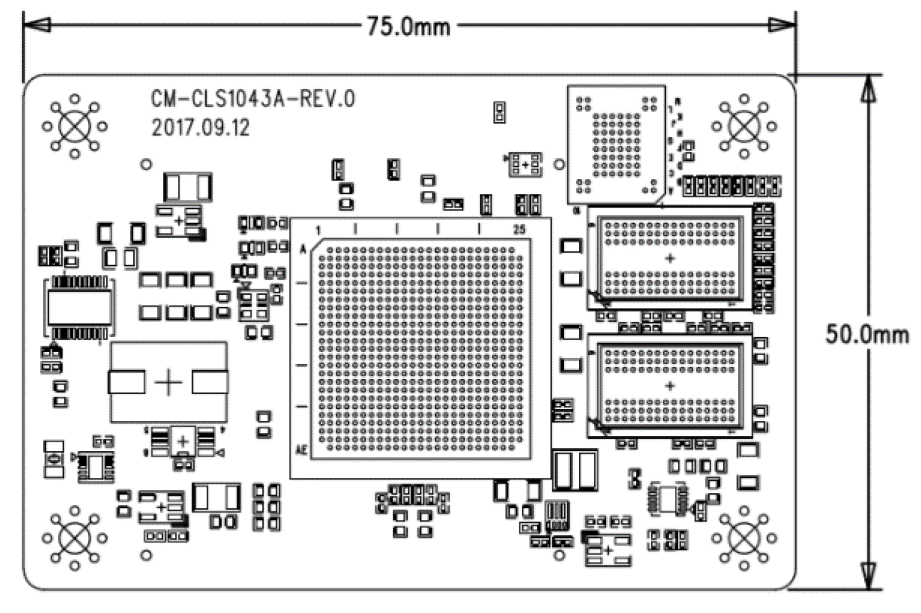

CM-CLS1043A Dimension
l Dimension : 75mm X 50mm

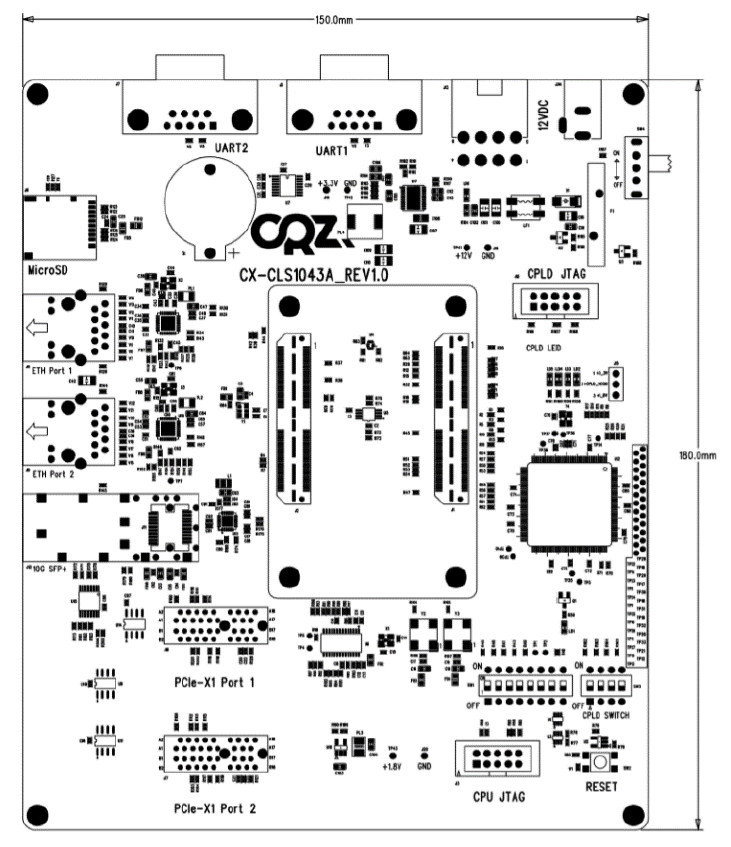

CX-CLS1043A Dimension
l Dimension : 150mm X 180mm
